Monochrome & 4-color 10.2 Inch ePaper Display Module

10.2″ ePaper Display Module

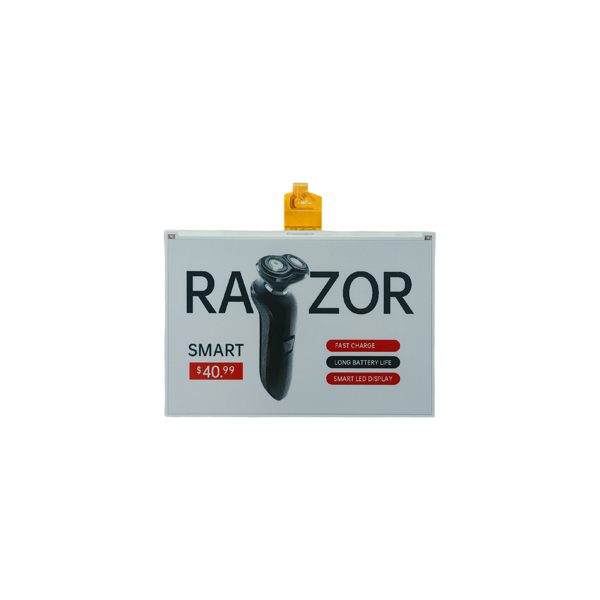

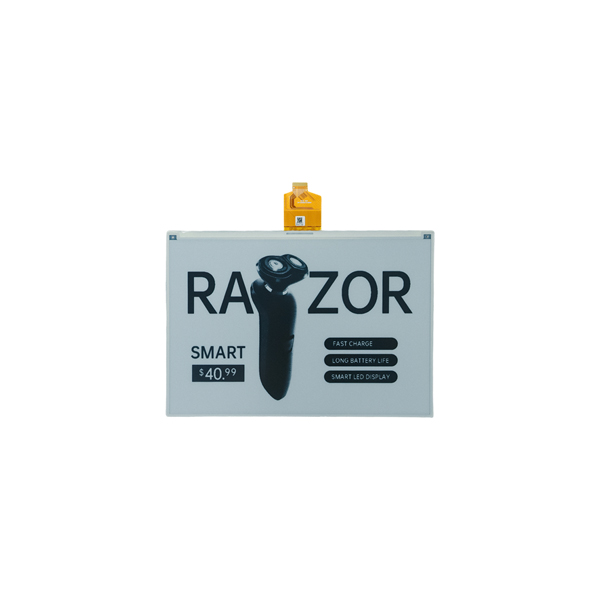

The 10.2-inch ePaper modules adopt a resolution of 960×640 to display the e-ink effect of color, based on a glass active matrix TFT substrate. With an active area of 215*143mm and 113 dpi, the display is capable of displaying images of black, white, red, and yellow (colors vary in models). The large-sized display can be used in digital notebooks and doorplates in hospitals and workplaces.

Size

10.2 inch

Resolution

960 x 640

Eye-friendly

Protect eyes from blue light

Contrast

High Contrast

Color

Various color options

Wide angle

178° ultra-wide angle

DPI

113 DPI

Energy

Low-power consumption

Comparison of Display Effect Between LCD and ePaper Screens

Compared with traditional digital screens, the ePaper display is a healthier option. LCDs often radiate bright light, specifically blue light, which has negative effects on the eyes and health. According to reports, brighter, bluer (or cooler) light from LCDs causes higher levels of stress on retinal cells, and ePaper is up to three times healthier for the eyes.

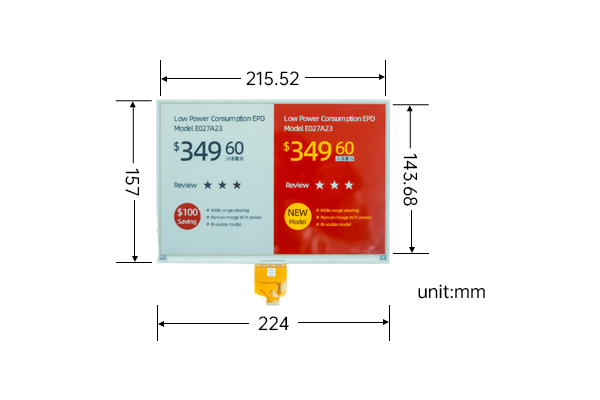

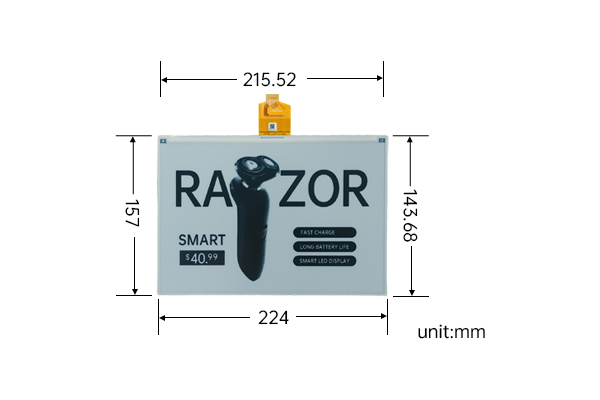

Details of Dimensions

Applications of ePaper Displays

The 10.2-inch e-paper display is an IoT-oriented display that can be used in doorplates and direction displays in buildings, or bedside displays in hospitals, due to their low power consumption, readability in sunlight, and ability to retain images without electricity. Apart from the 10.2-inch display, modules produced by SEEKINK cover all sizes (from 1″ to 42″) and various color options.
