Monochrome & 4-Color 13.3 Inch ePaper Display Module

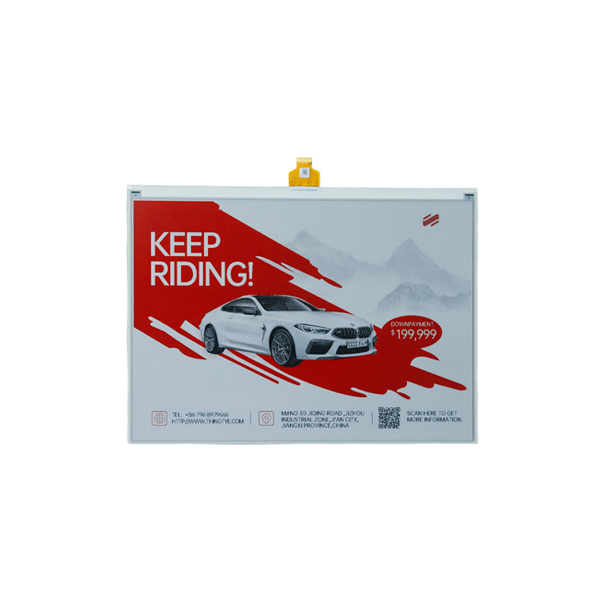

13.3″ ePaper Display Module

The 13.3-inch ePaper modules adopt a resolution of 960×680 to display the e-ink effect of color, based on a glass active matrix TFT substrate. With an active area of 275*195mm and 88 dpi, the display is capable of displaying images of black, white, red, and yellow (colors vary in models). The large-sized display is specially designed for outdoor signages for bus stop signs, vehicle signages, and other IoT devices.

Size

13.3 inch

Resolution

960 x 680

Eye-friendly

Protect eyes from blue light

Contrast

High Contrast

Color

Various color options

Wide angle

178° ultra-wide angle

DPI

88 DPI

Energy

Low-power consumption

Comparison of Display Effect Between LCD and ePaper Screens

Compared with traditional digital screens, the ePaper display is a healthier option. LCDs often radiate bright light, specifically blue light, which has negative effects on the eyes and health. According to reports, brighter, bluer (or cooler) light from LCDs causes higher levels of stress on retinal cells, and ePaper is up to three times healthier for the eyes.

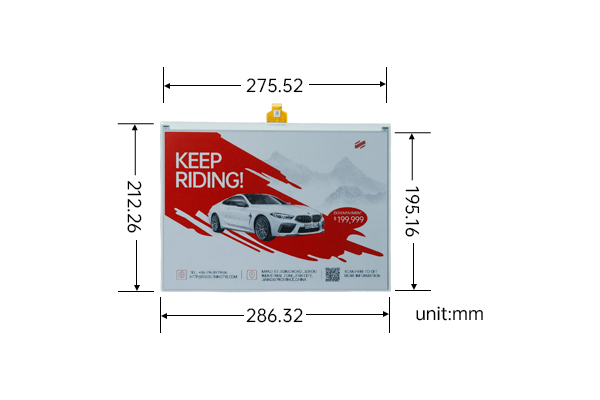

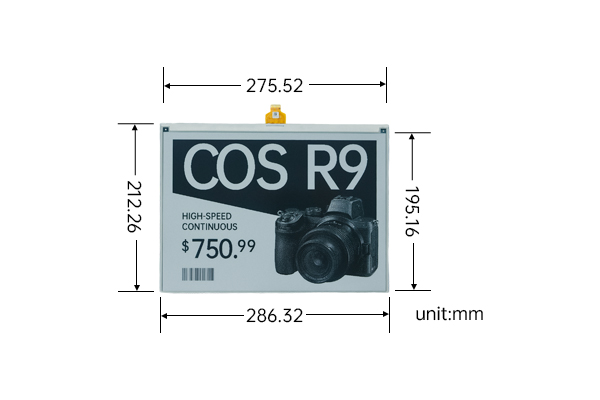

Details of Dimensions

Applications of ePaper Displays

The 13.3-inch e-paper display is an IoT-oriented display that can be used in bus stop signages and other outdoor signages, due to their low power consumption, readability in sunlight, and ability to retain images without electricity. Apart from the 13.3-inch display, modules produced by SEEKINK cover all sizes (from 1″ to 42″) and various color options.
