T040E5HC 4 Inch E ink Name Badge
Enhance Modern Workplaces Professional Image
- High-definition Display with PPI 236
- IP67-Rated WaterproofDesign
- Coin-like Thin & Lightweight Design
- Update Picture via APP or Cloud Platform
- Comprehensive Protection with Cold-Pressed Sealing Technology
Kindly Reminder: Not Available for Retail Sale.
E Ink Name Badge Solutions for Work/Visiting

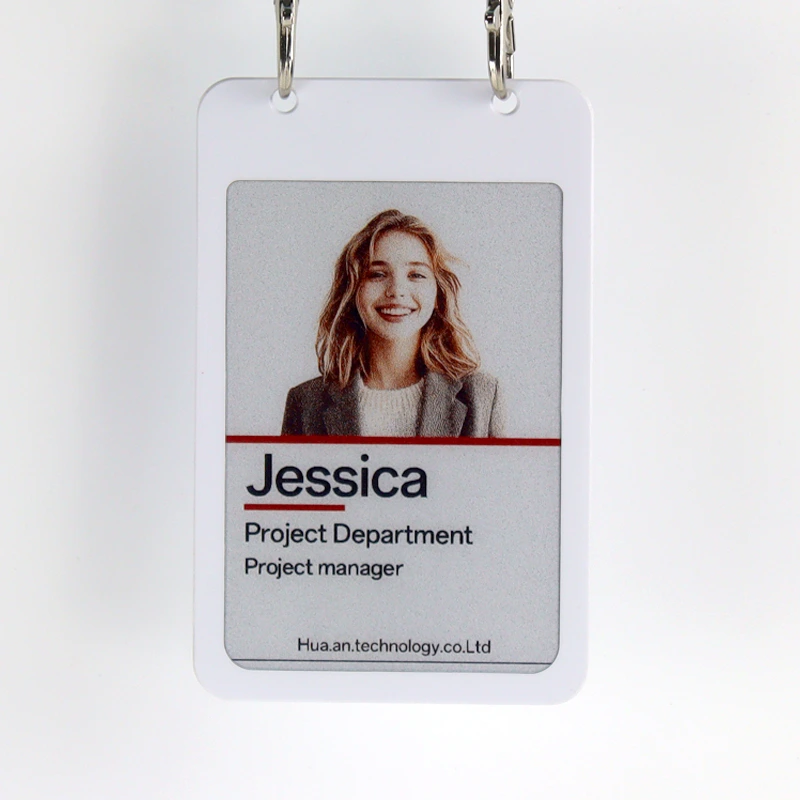

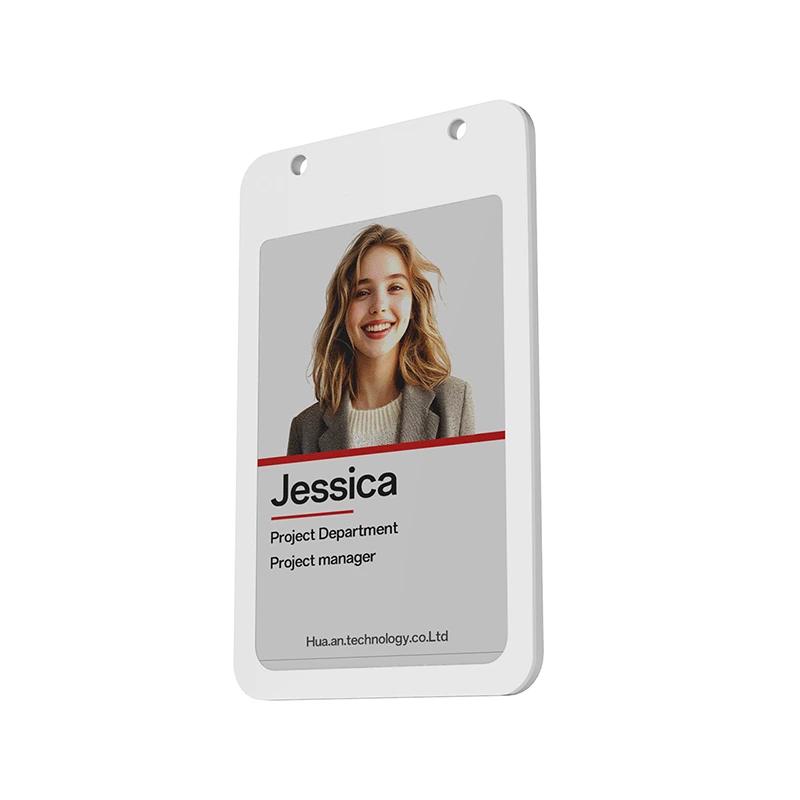

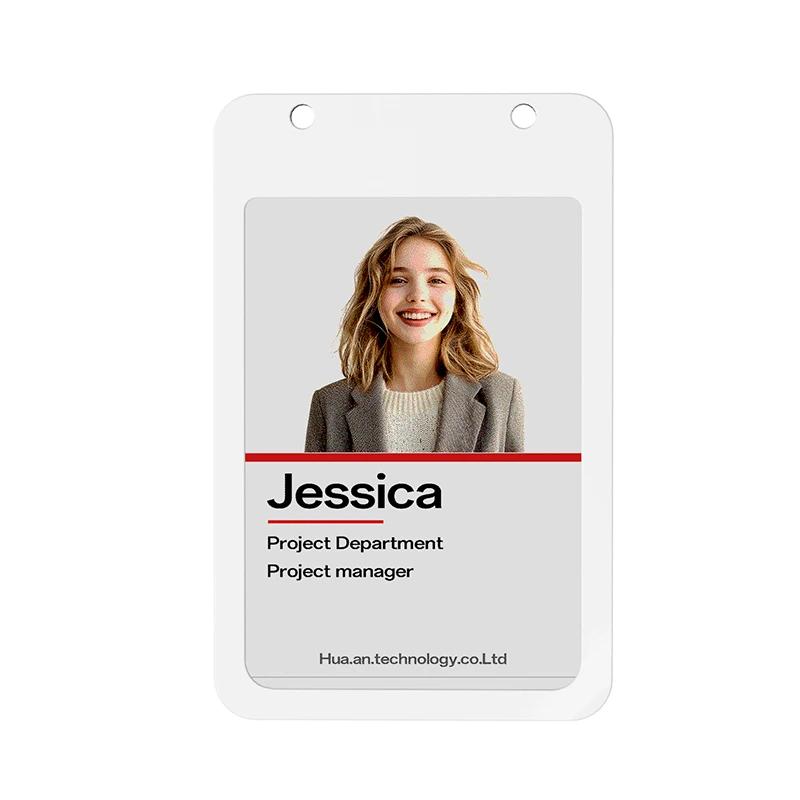

T040E5HC 4-inch e-ink name badge for the workplaces/visiting separately features a 4-inch 4-color EPD.
 |

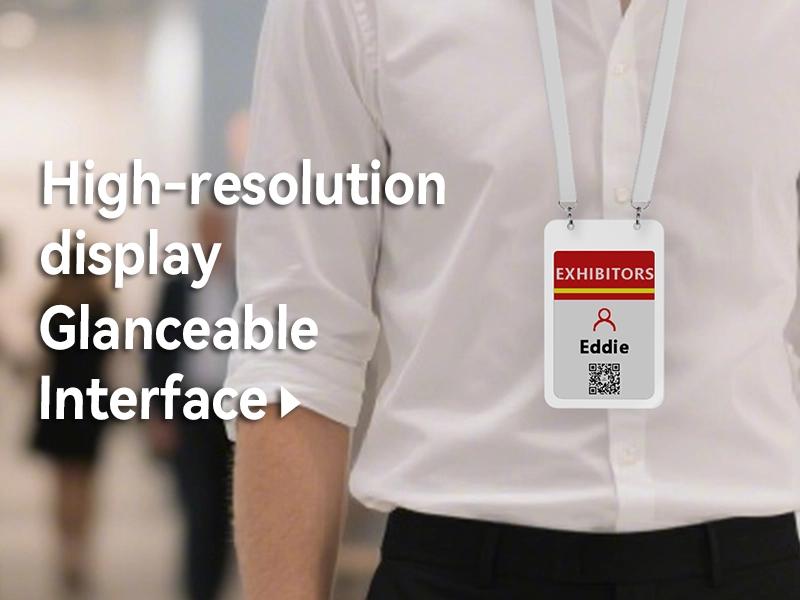

High-definition Display (PPI 236)The e-ink name badge features a high-definition display with 236 PPI, delivering crisp, sharp text, logos, and images with print-like clarity. This name tag supports clear identification and brand presentation, making it suitable for offices, factories, healthcare settings, and large-scale events. |
|||||||||||||

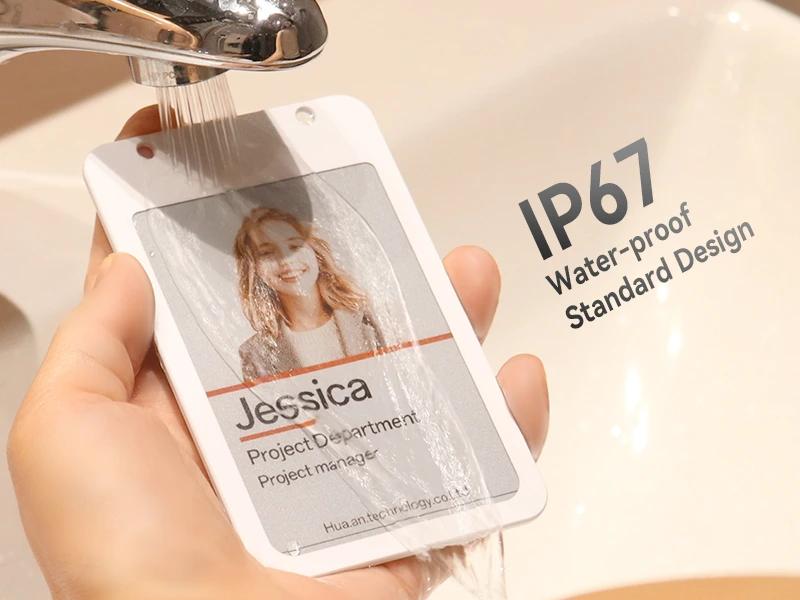

IP67 Water-proof Standard DesignThe e-ink name tag features an IP67-rated waterproof design, providing reliable protection against dust and water exposure in demanding environments. Its fully sealed, seam-free construction helps prevent water seepage, moisture, and dust intrusion, allowing the badge to operate dependably in a wide range of conditions. |
 |
|||||||||||||
 |

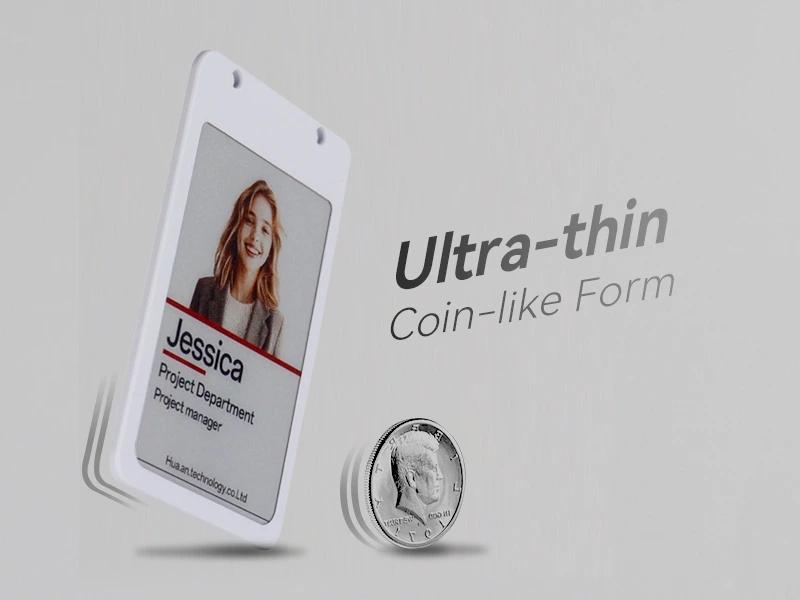

Coin-like Thin & Lightweight DesignThe e-ink name card features a coin-like thin and lightweight design, ensuring exceptional comfort for all-day wear. Its slim, low-profile form eliminates the bulk of traditional electronic displays, making it comfortable to wear during conferences, events, or daily work. |
|||||||||||||
Premium Aesthetic Appearance & TextureThe e-paper name badge boasts a premium aesthetic through a cold-pressed sealing process. This process creates a smooth, flat matte surface, allowing the display to sit flush with the badge rather than being recessed. The name card shows a clean, refined look with a paper-like texture, giving the badge a high-quality, professional appearance comparable to traditional printed name badges. |
|
|||||||||||||
|

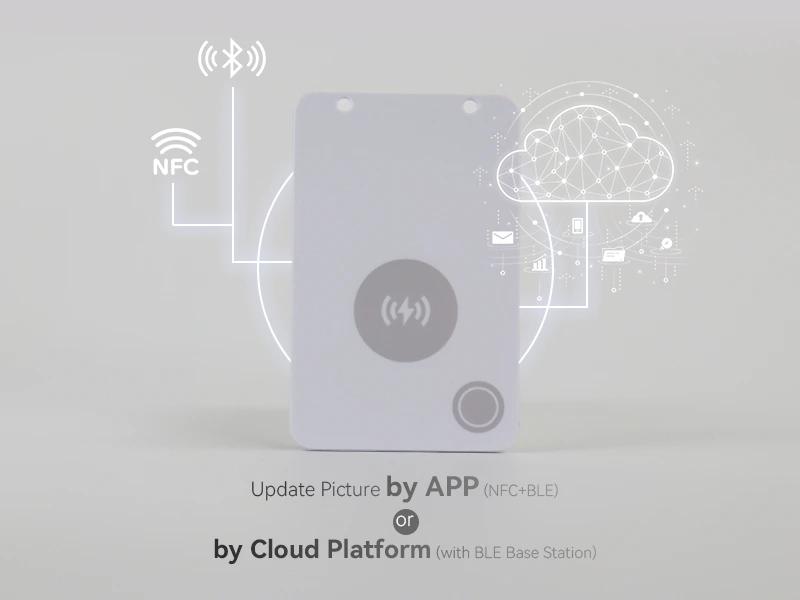

Real-time & Automated Update，Centralized & Remote ManagementThis e ink name badge can be updated picture/name/title/logo/QR code via the APP or the cloud platform effortlessly. This is particularly useful for dynamic environments like conferences or hybrid offices where information changes frequently. A single person or team can manage thousands of badges across multiple locations from a central platform (web or mobile app). |
|||||||||||||
Why is SeekInk capable of supporting your project?Based on SeekInk’s advanced waveform technology, the reliable R&D team, and strong production capacity, we offer comprehensive customization services from modules to complete products.
|
||||||||||||||
|
Display |
Size |
Color options |
|
55.65 x 81.40 mm |
4-Color with E Ink Spectra 3100 |
|
|
Display screen |
DPI |
|
|
4 Inch, Black/White/Red/Yellow EPD |
236 |
|
|
Resolution |
||
|
528 x 768 |
|
|
|
Dimensions |
Width |
Weight |
|
66.25 mm |
Approx. 30 g |
|
|
Depth |
Height |
|
|
2.8 mm |
104 mm |
|
|
Connectivity
|
Bluetooth |
WiFi |
|
Support Bluetooth 5.1 |
N/A |
|
|
NFC |
Device required |
|
|
Support |
Bluetooth station; Android & IOS phones |
|
|
Cloud server |
External storage |
|
|
Support |
1MB |
|
|
Power
|
Battery type |
Capacity |
|
Li-On rechargeable battery |
100 mAh |
|
|
Battery life |
Charging method |
|
|
2 months (refresh 5 times per day) |

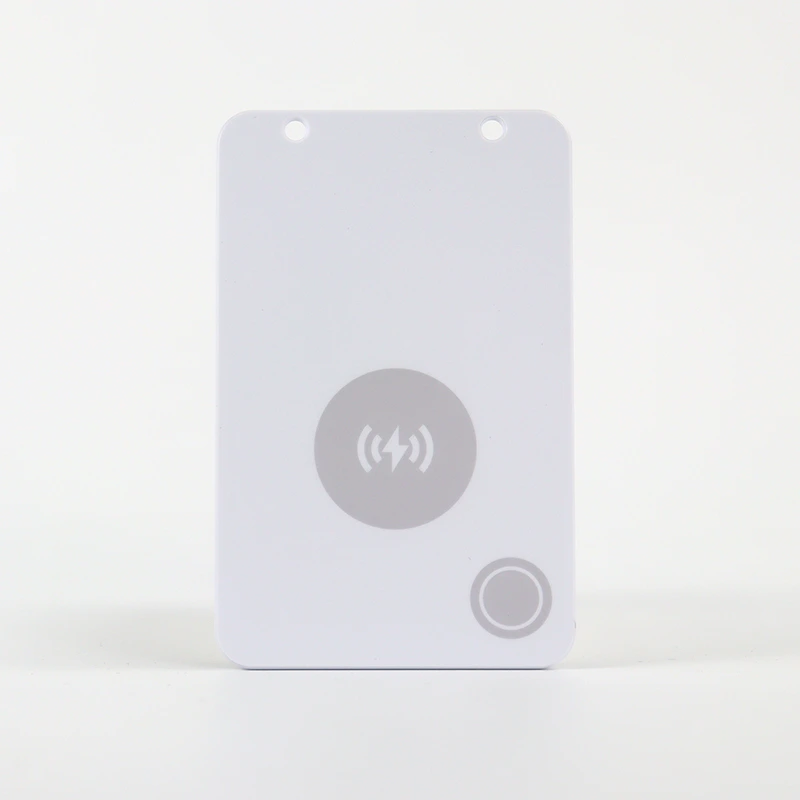

QI Standard Wireless Charging Protocol |
|
|
Temperature/Humidity |
Working/Storage temperature |
Working/Storage Humidity |
|
0~40℃ |
45%-70% |
|
|
Material |
PVC+PET |
|
|
Update Mode |
Updating mode 1 |
Updating mode 2 |
|
Refresh by phone APP: The best transmission of the |
Refresh by PC: The device is connected to a |
|
|
Operating
|
Phone operating system |
Server operating system |
|
Android (Version 10.0 and above); IOS(Version 14.0 and above); |
Windows 10, Linux |
|
